IPG communication platform can be configured as a soft witch (Server) as a soft witch (Server), A compact IP Based system with integrated media gateway or A combined of server and media gateway racks.

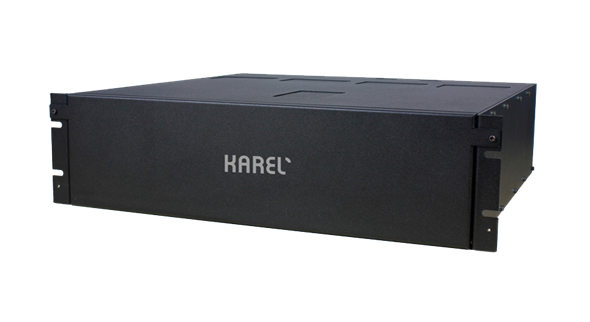

KAREL IPG is a modular and server based IP communication platform designed to meet the needs of medium and large scale organizations.

Overview

SYSTEM CAPACITY

Independent Switching Units
IPG500: 224 TDM & 500 IP ports
IPG1000: 1056 TDM & 2000 IP ports (with three racks)

Total IPG Platform
32000 IP ports (Server)
32000 TDM ports (Combination of IPG500 and IPG1000 racks)

INTERFACE CARDS
Analog Extension Card (FSK Caller ID)
Analog Line Card (FSK or DTMF Caller ID)
Proprietary Digital Extension Card

Hybrid Card

E1 Line Card (PRI, R2 or QSIG)

E&M Line Card

MGW Card (Interconnection of IP and TDM ports)

VRC Card (Auto attendant, voice mail and voice logger)

FOC Card (Fiber Optic Converter with 4 RJ-45 and 1 SC connectors)
FCT Card (GSM Interface Module for Karel GT40M GSM Gateways )
I/O Card (with 2 analog extension ports, alarm inputs, door opener,
music source connector, paging port, RS232 port)<
PROCESSOR
Stored program control (SPC)
Distributed processor architecture
High system reliability
Optional CPU redundancy (for IPG1000)

SOFTWARE SPECIFICATIONS

Servers: Embedded Proxy, Registrar, Presence & IM
Operating System: Linux Suse 12.2
CRL Capacity: 7.250.000 (for IPG1000) – 1.000.000 (for IPG500)

HARDWARE SPECIFICATIONS

Ethernet Interface: 10/100/1000 Base-TX

IP Protocols: H. 323 (for lines), SIP (for lines/extensions)

Analog Extension Interface: Caller ID, DP/DTMF signaling, 12 KHz metering pulse generation, polarity reversal, automatic gain adjustment, automatic line control

Analog Line Interface: Caller ID, DP/DTMF signaling, 12/16 KHz metering pulse & polarity reversal detection

E1 Interface: ETSI EN 300 402

PRI ISDN Interface: DSS1 (Q921 & Q931) – ETSI EN 300 403

R2 Digital Interface: DC Loop or Pulse signaling

E&M Interface: Types 1/ 2/3/4/5, 2-wire/4-wire audio connections, wink/immediate/delay start signaling, DP/DTMF number dialing.

USB: 2xUSB 2.0
Power: 48 VDC, max 350 Watt/rack

Connectors: RJ45 (Ethernet, Lines / Extensions), 623K4 (Relay/Music Source), RJ11 (RS232), Pin type-2 pin (External Devices)

Peripherals: Standard Telephones, Karel Feature Phones (FT20), Karel Digital Phones (ST26, ST30, NT30D, NT10D), Karel DSS Modules (DSS20-00,DSS20-28,DSS25-28,DSS3K-24,DSS3L-24), PC/Serial Printer, Alarm, Paging

CRL (Call Record Listing): PC Interface (LAN or PC), Serial Printer Interface

PHYSICAL SPECIFICATIONS

IPG1000 (per rack)
19’’ 3U chassis
440 (w) x 132.5 (h) x 440 (d) (mm)
480 (w) x 132.5 (h) x 462 (d) (mm) (including power supply)
Weight: 10 kg

AMBIENT CONDITIONS
Temperature: -5°C to +40°C, Humidity: 20% to 80

IPG communication platform can be configured as a softwitch (Server) as a softwitch (Server), A compact IP Based system with integrated media gateway or A combined of server and media gateway racks.

KAREL IPG is a modular and server based IP communication platform designed to meet the needs of medium and large scale organizations.

Overview

SYSTEM CAPACITY

Independent Switching Units
IPG500: 224 TDM & 500 IP ports
IPG1000: 1056 TDM & 2000 IP ports (with three racks)

Total IPG Platform
32000 IP ports (Server)
32000 TDM ports (Combination of IPG500 and IPG1000 racks)

INTERFACE CARDS
Analog Extension Card (FSK Caller ID)
Analog Line Card (FSK or DTMF Caller ID)
Proprietary Digital Extension Card
Hybrid Card
E1 Line Card (PRI, R2 or QSIG)
E&M Line Card
MGW Card (for the interconnection of IP and TDM ports)
VRC Card (for auto attendant, voice mail and voice logger (call
recording))
FOC Card (Fiber Optic Converter with 4 RJ-45 and 1 SC connectors)
FCT Card (GSM Interface Module for Karel GT40M GSM Gateways )
I/O Card (with 2 analog extension ports, alarm inputs, door opener,
music source connector, paging port, RS232 port)

PROCESSOR
Stored program control (SPC)
Distributed processor architecture
High system reliability
Optional CPU redundancy (for IPG1000)

HARDWARE SPECIFICATIONS

Ethernet Interface: 10/100/1000 Base-TX

IP Protocols: H. 323 (for lines), SIP (for lines/extensions)

Analog Extension Interface: Caller ID, DP/DTMF signaling, 12 KHz metering pulse generation, polarity reversal, automatic gain adjustment, automatic line control

Analog Line Interface: Caller ID, DP/DTMF signaling, 12/16 KHz metering pulse & polarity reversal detection

E1 Interface: ETSI EN 300 402

PRI ISDN Interface: DSS1 (Q921 & Q931) – ETSI EN 300 403

R2 Digital Interface: DC Loop or Pulse signaling

E&M Interface: Types 1/ 2/3/4/5, 2-wire/4-wire audio connections, wink/immediate/delay start signaling, DP/DTMF number dialing.

USB: 2xUSB 2.0

Power: 48 VDC, max 350 Watt/rack

Connectors: RJ45 (Ethernet, Lines / Extensions), 623K4 (Relay/Music Source), RJ11 (RS232), Pin type-2 pin (External Devices)

Peripherals: Standard Telephones, Karel Feature Phones (FT20), Karel Digital Phones (ST26, ST30, NT30D, NT10D), Karel DSS Modules (DSS20-00,DSS20-28,DSS25-28,DSS3K-24,DSS3L-24), PC/Serial Printer, Alarm, Paging

CRL (Call Record Listing): PC Interface (LAN or PC), Serial Printer Interface

SOFTWARE SPECIFICATIONS

Servers: Embedded Proxy, Registrar, Presence & IM

Operating System: Linux Suse 12.2

CRL Capacity: 7.250.000 (for IPG1000) – 1.000.000 (for IPG500)

PHYSICAL SPECIFICATIONS
3U chassis, 19″ compatible or wall-mountable
268 (w) x 131 (h) x 387 (d) (mm)
483 (w) x 131 (h) x 387 (d) (mm) (including support brackets)
Weight: 7 kg

New generation DS200 series IP communication systems provide analog, digital, ISDN and IP compatible solutions that allow simultaneous communication of audio, video, data and voice for rapid, quality and multi-purpose communication to the large scale businesses with advanced communication needs.

DS200M: 144 TDM ports, 750 IP extensions, 100 IP lines
DS200S: 224 TDM ports, 750 IP extensions, 100 IP lines
DS200: 1344 TDM ports, 750 IP extensions, 100 IP lines
DS200 L: 32000 TDM ports, 5000 IP extensions, 1000 IP lines

Overview

Key Features

• Remote systems can be operated as a single system with the IP bridge established between the different departments of the business
• IP communication performed over the IP bridge provides reasonable savings in communication costs
• Supports major IP communication features in analog, digital, ISDN and IP platforms

Software Features

• Calling from Private or Common Pool
• Company phonebook
• Instant messaging
• Presence
• QoS
• IP Encryption through sRTP/TLS
• Alarm center
• SNMP
• Automatic calling
• Busy Extension Signaling
• Call Back
• Busy external line
• Busy extension
• Missed call
• Call hold
• Call park
• Call transfer
• Executive-Secretary Service
• Conference
• Conference room
• Do not disturb
• Flexible numbering
• Call forwarding; all calls, in the night mode, busy extension, unanswered call
• Hotline
• Intrusion
• Selective line access
• Line-to-Line connection
• Redial
• Password services
• Phone lock
• Call hunting
• Music on hold
• Reminder/wake-up service
• Volume setting

Operator Features

• Account coded call
• Automatic line hold
• Automatic system check
• Call restriction
• Direct access to an extension
• Different ring cadences
• External call forwarding
• Facsimile forwarding
• Least cost routing (LCR)
• External line access groups
• Extension authorization level
• Automatic external line opening
• Night service
• System query from the display
• Equal load distribution for the operators
• Direct Transfer of Lines to Specified Extensions in Case of Power Failure
• Remote programming
• Remote system reset
• Extension groups
• Serial call transfer
• System administrator
• Intrusion authorization control
• Adjustable hold and park times
• Adjustable flash time
• MF/DP call

Technical Features

• Calling line identification restriction (CLIR)
• Calling line identification restriction (CLIR)
• Connected line identification restriction (COLR)
• Charging; start of call (AOC-S), during call (AOC-O), end of call (AOC-E)
• Multiple subscriber numbering (MSN)
• Direct dial-in (DDI)
• Point-to-point connection
• Point-to-multi-point connection
• Displaying network messages
• Enabling of the auxiliary processor board without interrupting the continuing calls when the main processor board is off-line (Hot-standby)
• 10/100 BaseT (Ethernet) Communication Speed : 100Mbps (Ethernet),
• Applications and compliance: PBX, CO , RURAL, STP, SP, TANDEM, TRANSIT, TAFICS / DSS1, EURO ISDN, Q-SIG, SS7, ISUP, MTP, CAS1B, CAS2B, R1, R2, 1VF\

Hotel Specific Features

• Hotel room extension identification
• Check-in and check-out
• Hotel room status (occupied, unoccupied, reserved)
• Room monitoring (Clean, not clean, being cleaned)
• Meet me service
• Time restriction
• Call authorization level
